Hook Type Blasting Machine

Hang chain continuous shot blasting machine

Hang chain continuous shot blasting machine

-Good performance

-High cleaning efficivecy.

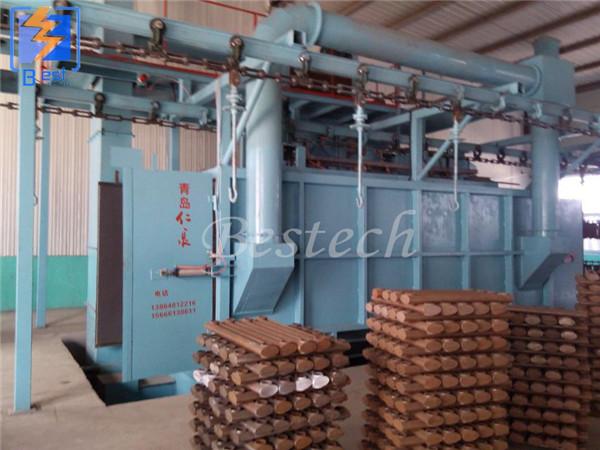

Hanger Chain SHOT BLASTING MACHINE

This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean. It is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and workpieces with the similar size.

Technical parameters

Type	Q383	Q384	Q483	Q583	Q585
Efficiency (hook/hour)	30-50	60-120	20-50	30-50	30-50
Loading Weight (kg)	300	400	300	300	500
Wheels*Power	4*7.5 kw	4*11 kw	4*15 kw	6*15 kw	8*15 kw
Hook Distance (mm)	600-800	600-1000	600-1000	600-1000	500-1000
Work Speed	0.3-8 m/min
