Drum type shot blasting machine

Barrel type shot blasting machine supplier

Barrel type shot blasting machine supplier

-Good quality

-Good cleaning efficiency.

-Good price

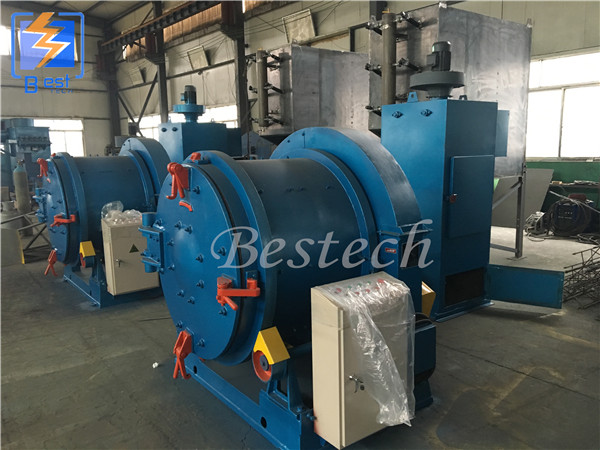

Q31series drum type shot blasting machine

•The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties.Put the work pieces into the barrel and blasting it in side way.

•The high speed impeller throws the abrasive to the tumbling castings or forgings in barrel,to remove the green sand or scale on the surface.It cleans evenly and its productivity is high,so it is suitable.

Item	unit	Q3110	Q3113
Drum diameter	mm	1000	1300
Loading capacity	kg	300	600
Productivity	kg/h	600-1500	2500-3500
Power	kw	10	14.5
Maximum weight of single workpiece	kg	15	30
Rotational speed of rolling drum	r/min	3	2.5
Abrasive flow rate	kg/min	120	160
Ventilation capacity	m3/h	800	2000
Dedusting efficiency	%	85	85
Outline dimensions	mm	207824581861	255023412250
