Drum type shot blasting machine



  • Q31 drum type shot blasting machine
Q31 drum type shot blasting machine

Q31 drum type shot blasting machine


-Good quality

-Good cleaning efficiency.

-Good price

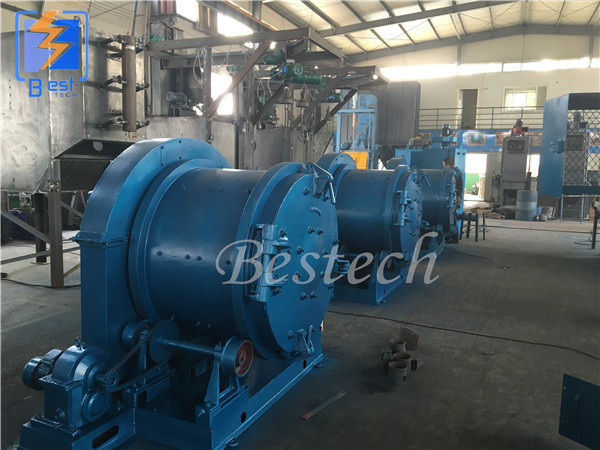

Q31series drum type shot blasting machine

•The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties.Put the work pieces into the barrel and blasting it in side way.



•The high speed impeller throws the abrasive to the tumbling castings or forgings in barrel,to remove the green sand or scale on the surface.It cleans evenly and its productivity is high,so it is suitable.


Item

unit

Q3110

Q3113

Drum diameter

mm

1000

1300

Loading capacity

kg

300

600

Productivity

kg/h

600-1500

2500-3500

Power

kw

10

14.5

Maximum weight of single workpiece

kg

15

30

Rotational speed of rolling drum

r/min

3

2.5

Abrasive flow rate

kg/min

120

160

Ventilation capacity

m3/h

800

2000

Dedusting efficiency

%

85

85

Outline dimensions

mm

2078*2458*1861

2550*2341*2250
